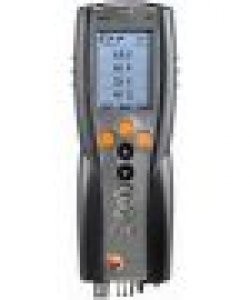

testo 340

testo 340 flue gas analyzer, incl. rechargeable battery, calibration protocol and carrying strap, equipped with O2 sensor, integrated flow/differential pressure measurement

  • measurement range extension for Single dilution slot or optional for all sensors
  • pressure-/ flow-measurement standard in every testo 340
  • automatic flow-controlled gas pump
  • 18 standard fuels and additional 10 user-defined fuels – Fuel data is calculated using software easyEmission

Rising fuel costs for thermal systems highlight more and more the need for efficiency monitoring using emission measurements. A practical, easy-to-use emission analyzer for a variety of applications is therefore ideal.

  • The unique measuring range extension feature facilitates unlimited measurements even at high gas concentrations.
  • testo 340 is equipped with an O2 sensor as standard. 3 additional gas sensors can be individually configured at any time so your analyzer is optimally adapted to your measurement job.
  • Compact design combined with reliable engineering makes testo 340 the ideal analyzer for commissioning, service and maintenance work as well as measurements for monitoring purposes.
  • - Industrial burners

  • - Stationary industrial engines
  • - Gas turbines
  • - Thermal processes
  • TÜV approval / EN standard
  • - Accuracy approved for O2, CO2, CO, NO, NOlow, °C, hPa to EN 50379 standard, Part 2
  • - Approved sensor change (adjustment without test gas)
  • automatic flow-controlled gas pump
  • modular gas sampling probes
  • internal data logging
  • option: Data transfer and real-time-analyzer-control via Bluetooth® module and software easyEmission
  • 18 fuels stored in the instrument as standard, more are user-specifically configurable with easyEmission

testo 340 must be equipped with a second gas sensor otherwise the analyzer cannot function. Max. 3 additional sensors can be fitted.



Gas sensor Measuring range Measuring range extension
Single dilution
CO-sensor 0... 10.000 ppm to 50.000 ppm
COlow-sensor 0...      500 ppm to  2.500 ppm
NO-sensor 0...   3.000 ppm to 15.000 ppm
NOlow-sensor 0...      300 ppm to   1.500 ppm
NO2-sensor 0...      500 ppm
SO2-sensor 0...   5.000 ppm to 25.000 ppm



Technical Data testo 340

  Measuring range Accuracy Resolution Response
time
O2 measurement
0 to 25 Vol. % ±0.2 Vol. % 0.01 Vol.% t90< 20 sec
CO measurement
(H2 compensated)
0 to 10.000
ppm

±10 ppm or ±10% of mv
(0 to 200 ppm)
±20 ppm or ±5% of mv
(201 to 2.000 ppm)
±10% of mv (2.001 to 10.000 ppm)

1 ppm t90< 40 sec
COlow measurement
(H2 compensated)
0 to 500 ppm

±2 ppm (0 to 39.9 ppm)
±5% of mv (remaining range)X

x data corresponds to 20°C ambient temperature.
Additional temperature coefficient 0.25% of reading/K.

0.1 ppm t90< 40 sec
NO-measurement 0 to 3.000 ppm ±5 ppm (0 to 99 ppm)
±5% of mv (100 to 1.999 ppm)
±10% of mv (2.000 to 3.000 ppm)
1 ppm t90< 30 sec
NOlow measurement 0 to 300 ppm ±2 ppm (0 to 39.9 ppm) ±5% of mv
(remaining range)
0.1 ppm t90< 30 sec
NO2 measurement* 0 to 500 ppm ±10 ppm (0 to 199 ppm)
±5% of mv (remaining range)
0.1 ppm t90< 40 sec
SO2 measurement* 0 to 5.000 ppm ±10 ppm (0 to 99 ppm)
±10% of mv (remaining range)
1 ppm t90< 40 sec

Temperature measurement
Fühlertyp Typ K
(NiCr-Ni)

-40 to +1.200°C ±0.5 °C (0 to +99 °C)
±0.5 % of mv (remaining range)
0.1 °C
Draught measurement -40 to+40 hPa ±0.03 hPa (-2.99 to +2.99 hPa)
±1.5 % of mv (remaining range)
0.01 hPa
Differential pressure
measurement
-200 to +200 hPa ±0.5 hPa (-49.9 to 49.9 hPa)
±1.5 % of mv (remaining range)
0.1 hPa
Absolute pressure
measurement
600 to +1.150
hPa
±10 hPa 1 hPa

Derived parameters

Efficiency

Flue gas loss

Flue gas dewpoint



0 to 120 %

0 to 99.9 %

0 to 99.9 °C







0.1 %

0.1 %

0.1 °C



CO2 measurement
(calculation from O2)



0 to CO2 max.



±0.2 Vol. %



0.1 Vol. %

Response time
t90 = ⟨ 40 s

*To avoid absorption, a maximum measurement duration of 2 hours should not be exceeded.

Measuring range extension

Single dilution, factor 5 (standard)
CO measurement
(H2 compensated)

Meas. range
Accuracy
Resolution

700 ppm to 50.000 ppm
±10 % of mv (additional error)
1 ppm

COlow measurement
(H2 compensated))
Meas. range
Accuracy
Resolution
300 ppm to 2.500 ppm
±10 % of mv (additional error)
0.1 ppm
NO-measurement Meas. range
Accuracy
Resolution
500 ppm to 15.000 ppm
±10 % of mv (additional error)
1 ppm
NOlow measurement Meas. range
Accuracy
Resolution
150 ppm to 1.500 ppm
±10 % of mv (additional error)
0,1 ppm
SO2 measurement Meas. range
Accuracy
Resolution
500 ppm to 25.000 ppm
±10 % of mv (additional error)
1 ppm

Dilution of all sensors, factor 2 (option, Part no. 0440 3350)

O2 measurement
With measuring range extension switched
on over all sensors:

Meas. range
Accuracy

Resolution
0 to 25 vol.%
Accuracy: ±1 vol.% additional error (0 to 4.99 vol.%)
±0.5 vol.% additional error (5 to 25 vol.%)
Resolution: 0.01 vol.%
CO-Messung
(H2-kompensiert)
Meas. range
Accuracy
Resolution
700 ppm to 20.000 ppm
±10 % of mv (additional error)
1 ppm
CO measurement
(H2 compensated)
Meas. range
Accuracy
Resolution
300 ppm to 1.000 ppm
±10 % of mv (additional error)
0.1 ppm

NO-measurement

Meas. range
Accuracy
Resolution
500 ppm to 6.000 ppm
±10 % of mv (additional error)
1 ppm

NOlow measurement

Meas. range
Accuracy
Resolution
150 ppm to 600 ppm
±10 % of mv (additional error)
0.1 ppm

NO2 measurement

Meas. range
Accuracy
Resolution
200 ppm to 1.000 ppm
±10 % of mv (additional error)
0.1 ppm

SO2 measurement

Meas. range
Accuracy
Resolution

500 ppm to 10.000 ppm
±10 % of mv (additional error)
1 ppm



General technical data

Memory Maximum
Per folder
Per site
The max. number of logs is determined by the number of folders or sites.
100 folders
Max. 10 sites
Per site Max. 200 logs
Regulated diaphragm pump Pump flow
Hose length

Max. pos. pressure/ flue gas
Max. neg. pressure/ flue gas
0.6 l/min (regulated)
max. 7.8 m
(corresponds to two probe hose extensions)
+50 mbar
-200 mbar
User-defined
fuels

10 user-defined fuels incl. test gas as fuel
Weight 960 g
Dimensions 283 x 103 x 65 mm
Storage temp. -20 to +50 °C
Oper. temp. -5 to+50 °C
Display Graphic display 160 x 240 pixels
Power supply Battery block 3.7 V / 2.4 Ah
Mains unit 6.3 V / 2 A
Material/Housing TPE PC
Protection class IP40
Warranty Analyzer:


Rech. batt.:
Sensors:
CO, NO, COlow, NOlow, NO2, SO2
O2
2 years (excluding working parts, e.g. sensors, sensor replacement filter)

1 year

1 year
1,5 years
