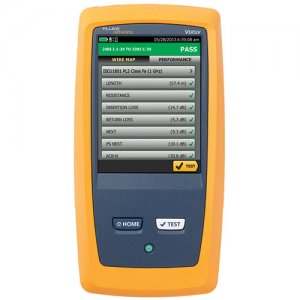

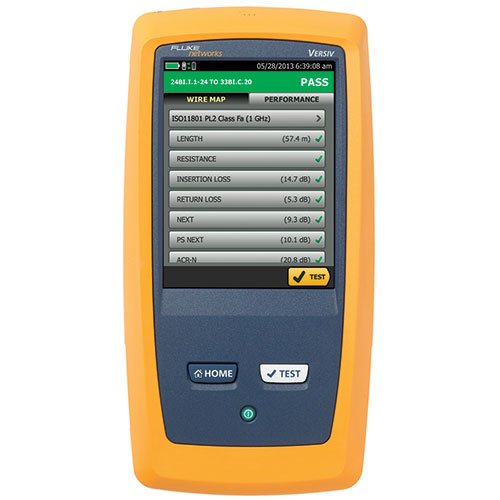

The Fluke DSX-5000QOi 1 GHz DSX Series Cable Analyzer with OLTS Quad, OTDR Quad and Fiber Inspection copper test solution enables testing and certification of twisted pair cabling for up to 10 Gigabit Ethernet deployments and will handle any cabling system whether it is a Cat 5e, 6, 6A or Class FA. Certifying a cable is one part of a process that starts with system design and ends with system acceptance. The faster that process goes, the more profitable you’ll be. Unfortunately, there are a lot of things that slow the process down - setting up the tester incorrectly, testing to the wrong limits, waiting for skilled technicians to analyze and troubleshoot failures, misinterpretation of results, and producing test reports that customers can not understand.
It all starts with 9-second Cat 6 Autotest that means you can meet TIA-568-B and ISO 11801:2002 certification requirements and receive structured cabling warranties much faster than ever before. With all this speed also comes increased accuracy. The Fluke DSX-5000QOi 1 GHZ DSX Series Cable Analyzer is the only independently verified tester to obtain UL classification for ISO Accuracy Level IV.
The Fluke DSX-5000QOi 1 GHz DSX Series Cable Analyzer with OLTS Quad, OTDR Quad and Fiber Inspection enables cable testing and certification for 10 Gigabit Ethernet deployments - whether it is an existing Cat 5e, Cat 6, Cat 6A or Class FA cabling system, the DSX tests to all industry standards. The electrically centered test plug results in the Level V accuracy designation introduced with IEC to support field testing to Class FA, 1000 MHz. The DSX exceeds the IEC Level V specification with less than half the allowable crosstalk margin, assuring you of higher confidence in results over the full frequency range. Higher performance cabling systems like Cat 6A have less tolerance to interference and less noise margin in general. Additionally complex Alien Crosstalk link-to-link certification is simplified by integrating the measurement capability into each copper module for 10GBASE-T testing
Fluke Network DSX-5000QOi Cable Analyzer meets the Intertek (ETL) Certification in accordance with the IEC-61935-1 specifications for accuracy Level IV, the draft accuracy Level V and in accordance with the ANSI/TIA-1152 specifications for Level IIIe.
|Shielded and unshielded pair LAN cabling||TIA Category 3, 4, 5, 5e, 6, 6A: 100 Ω ISO/IEC Class C, D, E, EA, F, and FA: 100 Ω and 120 Ω|
|Standard Link Interface Adapters|
|Permanent link adapters||Plug type: shielded RJ45|
|Optional Plug type: Tera|
|Channel Adapters||Jack type: shielded RJ45|
|Optional Jack type: Tera|
|TIA||Category 3, 4, 5, 5e, 6, 6A per TIA 568-C.2|
|ISO/IEC||Class C and D, E, Ea, F, FA certification per ISO/IEC 11801:2002 and amendments|
|Maximum frequency||1200 MHz|
|Speed of Autotest||Full 2-way Autotest of Category 5e or 6/Class D or E: 9 seconds Full 2-way Autotest of Category 6A/Class EA: 10 seconds|
|Support test parameters (The selected test standard determines the test parameters and the frequency range of the tests)||Wire Map, Length, Propagation Delay, Delay Skew, DC Loop Resistance, Insertion Loss (Attenuation), Return Loss (RL), NEXT, Attenuation-to-crosstalk Ratio (ACR-N), ACR-F (ELFEXT), Power Sum ACR-F (ELFEXT), Power Sum NEXT, Power Sum ACR-N, Power Sum Alien Near End Xtalk (PS ANEXT), Power Sum Alien Attenuation Xtalk Ratio Far End (PS AACR-F)|
|Input protection||Protected against continuous telco voltages and 100 mA over-current. Occasional ISDN over-voltages will not cause damage|
|Display||5.7 in LCD display with a projected capacitance touchscreen|
|Case||High impact plastic with show absorbing overmold|
|Main unit and remote||Lithium ion battery pack, 7.2 V|
|Typical battery life||8 hours|
|Operating altitude||13,123 ft (4,000 m)|
|Safety||CSA 22.2 No. 61010, IEC 61010-1 2nd Edition + Amendments 1, 2|
