AVS150-5 Autoclave Validation Data Logging System

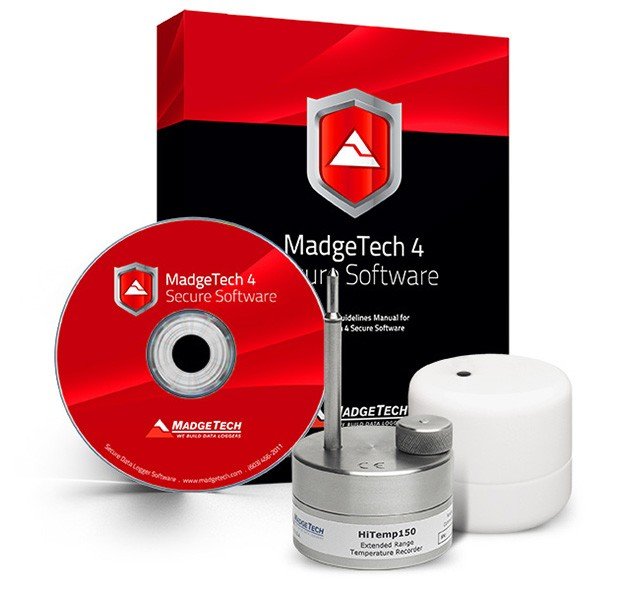

The AVS150-5 is a complete system used to perform autoclave validations. The AVS150-5 consists of five N.I.S.T. traceable HiTemp150 data loggers, five IP68 extended range thermal shields, an IFC200 USB cable package and MadgeTechs Secure Software providing tools to users to assist with FDA 21 CFR Part 11 compliance. For smaller size autoclaves or mapping projects, the AVS150, includes one HiTemp150 and one thermal shield.


The HiTemp150 is completely submersible and can measure temperatures up to 150°C. The 2" rigid probe provides a fast response time and can record readings as fast as once per second. The HiTemp150 can be used in each autoclave cycle for verification and to provide data for validation. When used with the thermal shield the device can withstand up to 250°C (time dependent).


MadgeTechs Secure Software provides data in graphical and tabular form, and provides a summary and statistical report of the data. The software also features sterilization calculations to determine the F0 value. Furthermore the software allows for different user levels and logins, electronic signatures, an audit trail and a secure data file to stand up to auditors.
