Bridge120 Data Logger

Category: Bridge-Strain

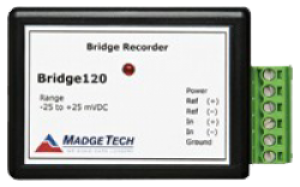

The Bridge120 is a battery powered, miniature, stand alone bridge/strain data logger. The device features a 20Hz processing speed and a real-time clock module. The Bridge120 supplies a 2.5V excitation voltage and accepts voltage signals from strain gauges, load cells and other low-level, DC voltage sources. The data logger is perfect for monitoring stress, torque, strain, pressure conditions and data from many other sensors/transducers. User programmable Engineering Units allow the data to be presented in Volts, milliVolts, microVolts as well as the proper units being measured.

This easy-to-use device can measure and record data for up to 32,767 measurements per channel. The storage medium is non-volatile solid state memory, providing maximum data security even if the battery becomes discharged. The device can be started and stopped directly from your computer and its small size allows it to fit almost anywhere. The Bridge120 data logger makes data retrieval quick and easy. Simply plug it into an empty COM or USB port and our user-friendly software does the rest.
