Yokogawa offers a wide range of portable Analog and Volt meters for making measurements on the go. We also offer frequency, Watt, Power Factor, and even miniature portables for varies applications.
PORTABLE ANALOG INSTRUMENTS
Category:
PORTABLE ANALOG INSTRUMENTS
Model 2041 single-phase wattmeters and single-phase low-power-factor wattmeters and Model 2042 three-phase wattmeters are electrodynamometer type wattmeters with indicators based on taut-band suspension. They can handle DC and frequencies from 25 Hz to 1000 Hz, and provide excellent power factor characteristics. These instruments are shielded with dual permalloy sheets as protection against external magnetic fields.
Category:
PORTABLE ANALOG INSTRUMENTS

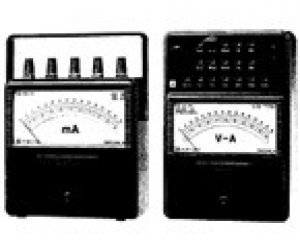

Models 2011 and 2012 ammeters & voltmeters are moving coil type instruments using a taut-band suspension system. The suspension system provides excellent reproducibility without friction, and strong resistance to shock impact. These precision instruments combine a magnetic circuit (sandwich mechanism) that blocks the effects of external magnetic fields, and a superior temperature compensation circuit.
Category:
PORTABLE ANALOG INSTRUMENTS
Model 2039 is a revolutionary series of portable wattmeters in which a power factor is used to operate the DC indicator. This is done using a transducer which provides a DC current proportionate to the voltage-current phase by means of a circuit. Model 2039 can be used in single-phase and balanced three-phase circuits. The electronic transducer, combined with a high sensitivity moving coil type indicator based on YOKOGAWA's proprietary taut-band suspension system, provides a level of performance not possible with conventional power factor meters.
Category:
PORTABLE ANALOG INSTRUMENTS
Carrying cases are useful for carrying and storing instruments.
Category:
PORTABLE ANALOG INSTRUMENTS
Model 2038 frequency meter uses a transducer to convert a measured frequency to a proportionate DC current, then shows the current as a DC current reading. The transducer, combined with a high sensitivity moving coil type indicator based on YOKOGAWA's proprietary taut-band suspension system, provides a level of performance not possible with conventional frequency meters. In addition to frequency measurements for research labs and schools, the 2038 can be used as a standard for measurement control labs and field tests.
Category:
PORTABLE ANALOG INSTRUMENTS
The E series of miniature portable ammeters & voltmeters consist of JIS C 1102-2 Class 1.0 and Class 1.5 instruments. The taut-band suspension system is used in the moving parts of models 2051 and 2052 to eliminate friction and provide strong resistance to shock impact.These instruments are functional and compact, making them suitable for labs at research centers and schools. They are also very useful for factory setups in which numerous instruments are arranged on a small tabletop area, and they are small enough to be carried for maintenance service use.
Category:
PORTABLE ANALOG INSTRUMENTS
Models 2013 and 2014 ammeters & voltmeters are moving iron type instruments using a taut-band suspension system. The suspension system provides excellent reproducibility without friction, and good resistance to shock impact. A cap shield mechanism serving to reduce external magnetic fields, a superior temperature compensation circuit, and other components ensure stable performance.
