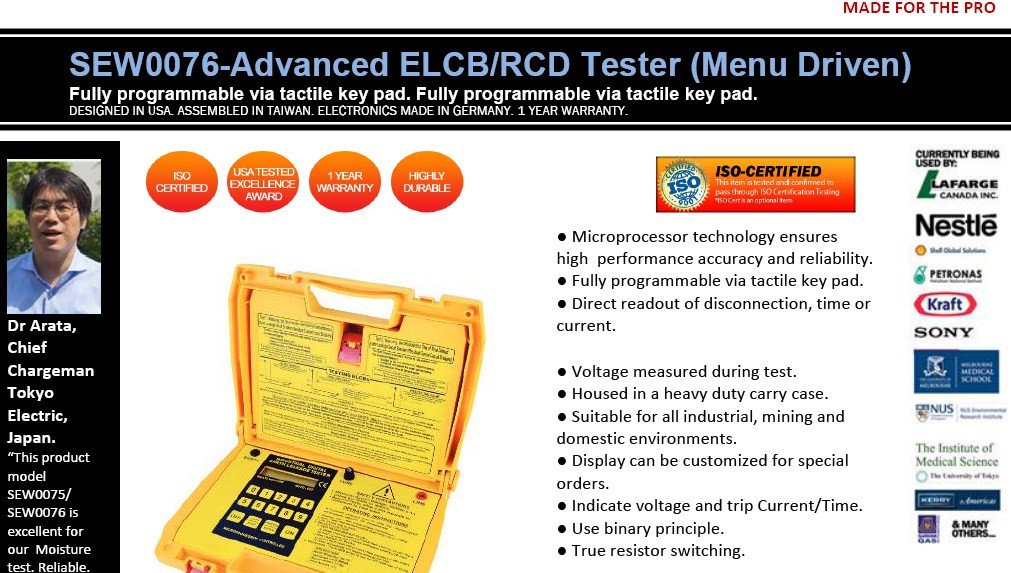

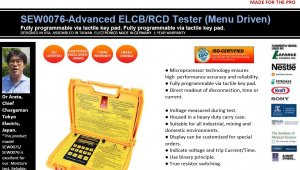

● Microprocessor technology ensures high performance accuracy and reliability.
● Fully programmable via tactile key pad.
● Direct readout of disconnection, time or current.
● Voltage measured during test.
● Housed in a heavy duty carry case.
● Suitable for all industrial, mining and domestic environments.
● Display can be customized for special orders.
● Indicate voltage and trip Current/Time.
● Use binary principle.
● True resistor switching.
Rated tripping |
1000mA |
Lowest resolution |
1mA |
System voltage |
230 / 380 / 550V (50Hz) |
Maximum trip time |
99.99s |
Highest resolution |
10ms |
Typical Accuracy |
|
Rated trip current |
±1%rdg ± 2dgt |
Voltage range |
±1%rdg ± 1dgt |
Trip-time |
±1%rdg ± 2dgt |
Operating temperature |
0°C to 40°C |
Operating-humidity |
80% Max. relative humidity |
Dimensions |
330(L) × 260(W) × 160(D)mm |
Weight |
Approx. 3700g |
Power source |
1.5V “C” × 8 Alkaline batteries |
