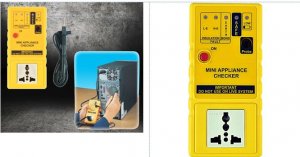

● This a simplified Version of an appliance tester which use low voltage and low current to perform it's checks. ● Application Example The appliance is plugged into the mini appliance checker, then the probe make contact with the protective conductor. ● Other appliance checking Washing Machine Toaster Iron Dish Washer Stove
The L-E led will lit when the resistance between Line to Earth is lower than 1MΩ ±5% .
The N-E led will lit when the resistance between Neutral to Earth is lower than 1MΩ±5%
The EARTH BOND led will lit when the resistance between the EARTH to the Probe is higher than 10Ω±5% .
Line to Earth test current is 9uA maximum. Neutral to Earth test current is 9uA maximum. Earth to Probe test current is 2.3mA maximum.
