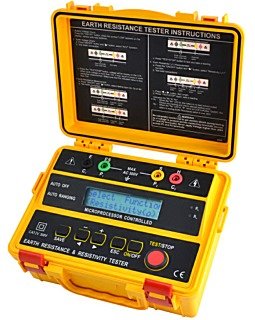

● Microprocessor-controlled. ● Earth resistivity (ρ) test. ● Earth testing at 20Ω, 200Ω, 2kΩ. ● Earth voltage measuring : 0-300V AC. ● Automatic C spike check. ● Automatic P spike check. ● 2-Wire test, 3-Wire test, 4-Wire test. ● LCM display. ● Auto ranging. ● Auto power OFF. ● Data hold. ● 200 measurement results can be saved in the memory and recalled on the display. ● Interval between auxiliary earth spikes is 1.0~50.0m.
Earth Resistance 0-20Ω / 0-200Ω / 0-2kΩ Earth Voltage 0-300.0V AC Earth Resistivity (ρ=2 × π × L × R) 0.06~6.28kΩ.m 0.62~62.8kΩ.m 6.28~628kΩ.m
Earth Resistance ±2%rdg ± 3dgt Earth Voltage ±2%rdg ± 3dgt
Earth resistance resolution
0-20Ω : 0.01Ω 0-200Ω : 0.1Ω 0-2kΩ : 1Ω
Earth resistance by constant current Inverter 820Hz approx. 2mA
