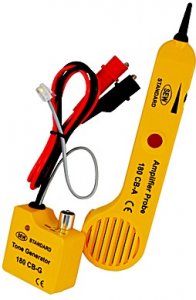

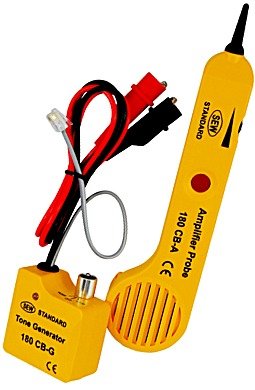

Sew 180 CB

Category: Cable Tracers

Amplifier Probe

The Amplifier Probe is designed to identify and trace
    wires or cables within a group without damaging
    the insulation.
Works with any Tone Generator to identify wires.
Volume control for increased sensitivity and adjustable
    to suit work environment.
Recessed ON/OFF button prevents battery drain.
A phone jack is designed for headset or handset.

Tone Generator

● Tone Generator is a great tool for locating and
   identifying cable pairs or individual conductors.
● 180 CB-G doesn't only provide the function of a tone
   generator, but also serves as a continuity and polarity
● Test results are displayed by a bi-colored LED.

Amplifier Probe
Frequency 1Hz~12kHz
Receiver distance < 50cm
Sensitivity control ˇ
Probe tip Fixed
Power source 9V(6F22) × 1
Dimensions 230(L) × 56(W) × 27(D)mm
Weight Approx. 125g (battery included)
Tone Generator
Wave form Square Wave
Frequency 1kHz±15%
Over voltage
100V DC
Single tone   ˇ
Alternating tone Fast
Connection RJ11 connector, alligator clip x 2,
RJ45 connector (optional)
Power source 9V(6F22) × 1
Dimensions 64(L)×58(W)×34(D)mm
(battery included)
Approx. 120g
Operating temp &
0˚~40˚C, 80% Max.
Storage temp &
-10˚~50˚C, 80% Max.
Safety standard EN 61326-1 EN 55011
EN 6100-4-2 EN 6100-4-3
