SEW-Taiwan

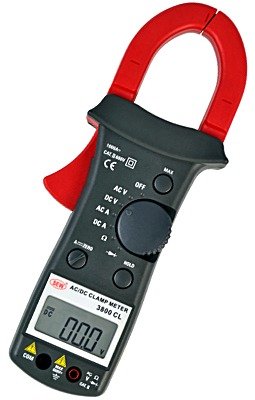

Sew 3800 CL

Category: AC/DC Clamp Meters
FEATURES
● Full auto range for V.A and Ω functions.
● Data hold function freezes the reading in dimly lit or hard to reach
   places.
● Low battery indication.
● Built-in buzzer for continuity test.
● Safety design throughout with no exposed metal parts. Shielded
   banana plugs and recessed input terminals.
● Ohm function ideal for checking continuity of relays transformers
   and motor coils.

  SPECIFICATIONS


AC A 400A / 1000A
±(1.5%rdg+3dgt) : 40-500Hz
AC V 400V / 600V
±(1.0%rdg+3dgt) : 40-500Hz
DC A 400A / 1000A
±(1.5%rdg+3dgt)
DC V 400V / 600V
±(0.75%rdg+3dgt)
  400 / 2000
±(1.0%rdg+3dgt)
Flashlight   ───
LCD backlight display   ───
Buzzer sounds    <38
Conductor size 40mm Max.
Low battery
Indication

Dimensions 255(L) × 80(W) × 35(D)mm
Weight
(battery included)
Approx. 420g
Power source 9V(6F22) × 1
Safety standard EN 61010-1 CAT III 600V
EN 61010-2-32
