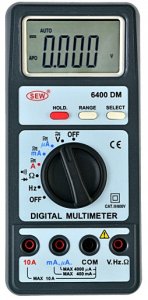

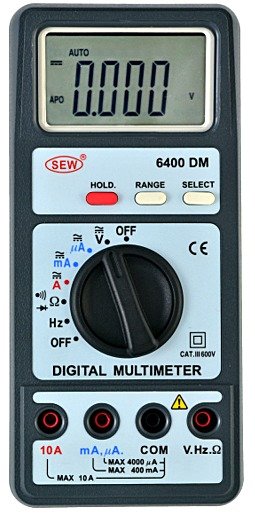

Sew 6400 DM

FEATURES
● 4000 counts LCD with a maximum display of 3999.
● Angled display design helps the user to identify the reading of value
   easier.
● Auto ranging designed.
● Range change function.
● Continuity check.
● Diode measurement.
● Data hold function.
● Low battery indication.
● Over range indication.
● Fuse protection.
● Special hook design used to hang the meter for ease of use.

  SPECIFICATIONS

DC Voltage

Ranges

Resolution

Accuracy

Input protection

400.0mV

100μV

±(0.5%rdg+3dgt)

1000V DC

4.000V

1mV

40.00V

10mV

400.0V

100mV

1000V

1V

Input impedance : 10M
AC Voltage

Ranges

Resolution

Accuracy

Input protection

400.0mV

100μV

±(1%rdg+5dgt)

800V AC

4.000V

1mV

40.00V

10mV

400.0V

100mV

750V

1V

Input impedance : 10M
DC Current

Ranges

Resolution

Accuracy

Input protection

400.0μA

0.1μA

±(1%rdg+5dgt)

500mA

4000μA

1μA

40.00mA

0.01mA

400.0mA

0.1mA

10A

10mA

±(2%rdg+3dgt)

12.5A

Overload Protection 0.5A/250V fast blow fuse for 400mA
                                     12.5A/500V fast blow fuse for 10A
AC Current

Ranges

Resolution

Accuracy

Input protection

400.0μA

0.1μA

±(1%rdg+5dgt)

500mA

4000μA

1μA

40.00mA

0.01mA

400.0mA

0.1mA

10A

10mA

±(2%rdg+3dgt)

12.5A

Overload Protection 0.5A/250V fast blow fuse for 400mA
                                     12.5A/500V fast blow fuse for 10A
Resistance

Ranges

Resolution

Accuracy

Max test
current

Max open
circuit voltage

400.0

0.1

±(1.5%rdg+3dgt)

0.55mA

0.5V

4.000k

1

40.00k

10

400.0k

100

4.000M

1k

40.00M

10k

±(2%rdg+4dgt)

Overload Protection 500V DC
Frequence

Ranges

Resolution

Accuracy

4.000kHz

1Hz

±(1.0%rdg+2dgt)

40.00kHz

10Hz

400.0kHz

100Hz

4.000MHz

1kHz

40.00MHz

10kHz

Continuity

Ranges

Resolution

Accuracy

Input protection

400.0

0.1

< 25

0.55mA

GENERAL
   Low battery indication “BATT”
Operating temperature 0ºC ~ 40ºC, 80% Max.
Storage temperature & humidity -10ºC ~ 50ºC, 80% Max.
Dimensions 192(L) × 88.5(W) × 45(D)mm
Weight
(battery included)
Approx. 350g
Power source 1.5V (AAA) × 2
Safety standard EN 61010-1 CAT III 600V
EN 61326-1
