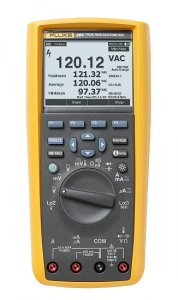

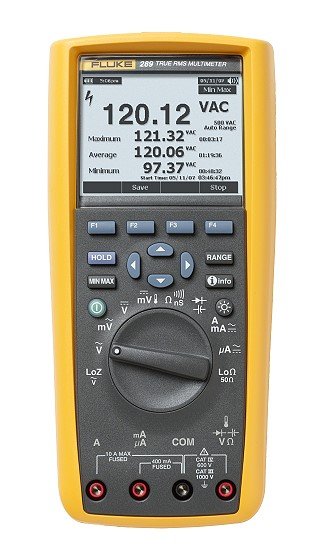

Fluke 289 and Fluke 289/FVF TRMS Industrial Logging Digital Multimeter with TrendCapture

The new Fluke 289 True-rms Industrial Logging Multimeter with TrendCapture maximizes plant productivity in the most demanding industrial settings. Solve problems on motor drives, in-plant automation, power distribution and electro-mechanical equipment. The Fluke 289 puts powerful diagnostic capabilities in your hands, and helps you take troubleshooting and predictive maintenance to the next level. It is the ultimate handheld tool for any difficult application that requires precision and true-rms accuracy combined with a large graphic display.
Specifications
Models Fluke 287 Fluke 289
Bandwidth: 100 kHz
Voltage: 1000V
(0.01 mV to 1000.0 V)
Current: 10A
(0.01A to 10A)
Resistance: 500 MΩ
(0.01Ω to 500 MΩ)
Continuity/Diode
Conductance:0.01 nS to 50.00 nS
(20 MΩ to 100 GΩ)
Capacitance: 1 pF to 100mF
(0.001 nf to 100.00 mF)
Frequency 1 MHz
(0.1 Hz to 999.99 kHz)
Min/Max/Average, Hold, Auto and Manual Range
Temperature: -200 °C to +1350 °C
(Display °C or °F)
(dBm), Selectable References or (dBV)
Peak/Crest Factor 250 µs Peak Min or Max
(From 1.0 to 4.0)
Duty Cycle: 1% to 99%
Low Pass Filter N/A
Resistance Low Ohm
(0.001 Ω to 50.000 Ω 10 mA source)
N/A
Lo Z N/A
Fluke 289/FVF Kit includes:
  • Fluke-289 True-rms Industrial Logging Multimeter with TrendCapture, LoZ, LoPass filter, and Lo Ohms
  • FVF-SC2 FlukeView Forms Software and cable
  • TL71 Silicon Test Lead Set
  • AC72 Alligator Clips
  • 80BK-A Integrated DMM Temperature Probe
  • TPAK Magnetic Meter Hanger for hands-free operation
  • C280 Soft Case for meter protection and accessory storage
Fluke 289FVF Shown
Fluke 289/FVF Shown
Maximize productivity with the combined Fluke 289 and FlukeView® Forms Combo Kit. With built-in data logger and TrendCapture capability, the Fluke 289 helps you track down elusive, intermittent problems, monitoring equipment with any of its functions while you do other jobs. Using FlukeView Forms soft-ware allows you to overlay your logged data from six meters or six time periods to find cause and effect relationships or for condition monitoring. Turn your data into meaningful graphs and tables for a professional report or analyze individual readings or series of measurements. The 289/FVF combo kit gives you a practical and affordable approach to predictive maintenance.
Fluke 289/IMSK Kit includes:
  • Fluke-289V Advanced data logging Multimeter with Trendcapture: Record, graph and review measurements in the field
  • Fluke-i400 AC 400A Current Clamp
  • TL71 Silicone Test Leads
  • AC72 Alligator Clips
Fluke 289IMSK Shown
Fluke 289/FVF Shown
Fluke has combined its advanced data logging Multimeter with Trendcapture with the i400 AC Current Clamp. Together they provide the ability to troubleshoot most industrial problems. Additionally, the Fluke-289/IMSK Industrial Multimeter Service Combo Kit represents a significant savings over buying the items separately
