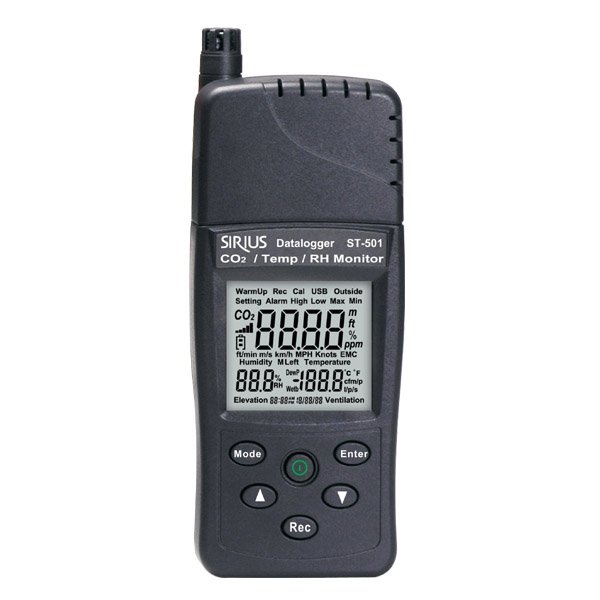

Tenmars ST-501 _ CO2/Temp./RH Monitor

Model No.: : ST-501
Product Description

- 3 Independent CO2, humidity and temperature sensors.
- User operated CO2 calibration.
- USB datalogg: 50,000 records.
- Internal backup battery to maintain date/time setting.
- Power management IC to increase batter efficiency.
- Easy- to-Use PC software for parameter settings and data analysis.
- Internal CO2 alarm buzzer.

ST-501 is an excellent indoor air quality (IAQ) instrument measuring the carbon dioxide (CO2), Relative Humidity (RH) and Temperature.


Applications

- Building HVAC monitoring.

- Indoor air quality survey.

- Locate the presence of combustion fumes from vehicles and appliances.

- CO2 Sensing Method: NDIR (Non-Dispersive Infrared)

- Measures: Carbon dioxide in PPM, temperature (F or C), % Relative Humidity



- CO2 Measurement range: 0~9999 ppm (2001~9999 ppm over range)



- CO2 Accuracy: ± 75ppm, ± 8% of reading (0~2000 ppm)



- Display Resolution - ±1 ppm



- Datalogging: 50,000 records,
- Fast USB download (50,000 records in less than 10 seconds.)



CO2 Sensor

Type

Non-dispersive infra-red (NDIR)

Measurement Range

0~9999 ppm (2001~9999 ppm over range)

Accuracy

± 75ppm, ± 8% of reading (0~2000 ppm)

Resolution

±1 ppm

Response Time

2 seconds



Relative Humidity Sensor

Temperature Sensor:

Type

CMOSens

Type

Thermistor

Measurement Range

1% ~99%

Measurement Range

0 to 50C

Accuracy

±3.0%RH(20~80%)

±5.0%RH(80%)

Accuracy

±0.5C from 0-50C

Resolution

0.1%

Resolution

0.1C

Response Time

8 Seconds

Response Time

1 seconds





Power Supply

Battery

Four AAalkaline batteries x4

Battery Operation

24 hours

External Power Supply

6V VDC with 0.5A
