Features
* 35MHz Bandwidth, Dual Channel (GOS-635G)
* 20MHz Bandwidth, Dual Channel (GOS-622G)
* High Sensitivity 1mV/div
* TV Synchronization
* Z-Axis Input
* ALT Triggering Function
* Hold Off Function (GOS-635G,GOS-622G)
* CH1 Output
Description:

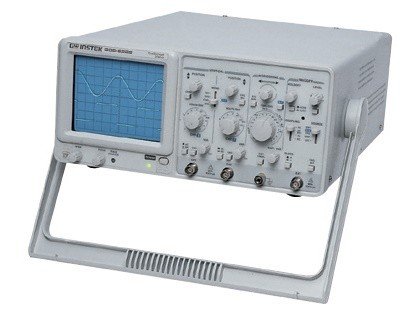

The GOS-635G and GOS-622G are general purpose analog oscilloscopes with 35MHz and 20MHz bandwidth, respectively. These products are designed for a wide range of applications ranging from product designs or assembly lines to EE laboratories or class experiments. Featuring a low vertical sensitivity at 1mV/div and versatile triggering, the GOS-635G and GOS-622G can reliably capture small signals. The GOS-635G/622G is the highest performance/price solution in the Test & Measurement market.
Specification :
CRT | |
Type | 6-inch rectangular type with internal graticule 8 x 10 div (1div=1cm) |
Z-Axis Input | Input Impedance: Approx. 5kΩ Sensitivity: Above 3Vp-p Bandwidth: DC ~ 5MHz |
VERTICAL SYSTEM | |
Sensitivity | 5mV/div~5V/div±3%,1mV~2mV/div±5% |
Bandwidth | DC ~ 35MHz (GOS-635G) DC ~ 20MHz (GOS-622G) DC ~ 10MHz at 1~ 2mV/div |
Rise Time | 10ns (35ns at 1mV~2mV/div)for GOS-635G 17.5ns(35ns at 1mV~2mV/div)for GOS-622G |
Input Impedance | Approx. 1MΩ |
Input Coupling | AC, DC, GND |
Vertical Mode | CH1, CH2, DUAL, ADD, CH2 INV (Dual automatic switching ALT and CHOP) |
HORIZONTAL SYSTEM | |
Sweep Time |
0.1μs ~ 0.5s/div ±3% 100ns ~ 50ms/div ±5% (x 10 MAG) 10ns ~ 50ns ±8% (x 10 MAG) |
TRIGGER | |
Trigger Mode | AUTO, NORM |
Trigger Source | CH1, CH2, ALT, LINE, EXT |
Trigger Coupling | AC, DC, HF REJ, TV |
Trigger Slope | "+" or "-" |
X - Y OPERATION | |
Sensitivity | 5mV ~ 5V/div ±4% |
X-axis Bandwidth | DC ~ 1MHz |
Phase Error | 3° or less from DC ~ 50kHz |
OUTPUT SIGNAL | |
Ch1 Signal Output | Voltage: approx. 50mV/div into 50Ω |
Calibrator Output | 1kHz Square wave, 2Vpp ±2% |
POWER SOURCE | |
AC 100V/ 120V/ 220V/ 230V ±10%, 50Hz/ 60Hz | |
DIMENSIONS & WEIGHT | |
310(W) x 150(H) x 455(D) mm; Approx. 8.2kg |
Accessories:
User manual x 1, Power cord x 1
GTP-060A-4 : 60MHz ( 10 : 1/1 :1 ) Switchable Passive Probe for GOS-635G/GOS-622G (one per channel)
Optional Accessories
GTL-110 Test lead, BNC-BNC heads
GTC-001 Instrument cart, 450(W) x 430(D)mm (120V input socket)
GTC-002 Instrument cart, 330(W) x 430(D)mm (120V input socket)
Ordering Information:
GOS-635G 35MHz, 2-Channel , Oscilloscope with Hold Off Function
GOS-622G 20MHz, 2-Channel , Oscilloscope with Hold Off Function
