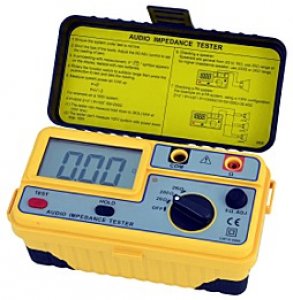

Sew 1106 IM

FEATURES
● Large LCD : 68 × 34mm (2.677" × 1.338").
● True measurement of speaker systems actural impedance at 1kHz.
● Three test ranges allow testing of home theater and commercial
   sound systems.
● Measures transformer impedances.
● Battery operation.
● Low battery indication.
● Data hold function.
● 0Ω adjustment.

  SPECIFICATIONS

Measuring ranges 0-20Ω / 0-200Ω / 0-2kΩ
Test frequency 1kHz
Accuracy 20Ω:±2%rdg±2dgt
or ±0.1Ω Which is greater
200Ω/2kΩ : ±2%rdg±2dgt
Low battery
indication
  “ Symbol appears on the display
Data hold indication “  “ Symbol appears on the display
Dimensions 175(L) × 85(W) × 75(D)mm
Weight
(battery included)
Approx. 600g
Power source 1.5V (AA) × 8
Safety standard EN 61010-1 CAT III 200V
EN 61326-1
