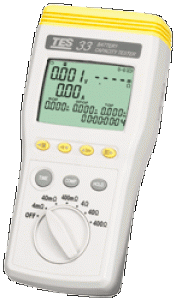

TES-33 Battery Capacity Tester (USB)

Battery Types Tested Compact storage batteries, Alkali and lead-acid batteries..
Battery Capacity 0 to 1200AH
Resistance Ranges : 4mΩ, 40mΩ, 400mΩ, 4Ω, 40Ω, 400Ω
Resolution : 1μΩ , 10μΩ , 100μΩ , 1mΩ , 10mΩ , 100mΩ
Accuracy : 4mΩ:±(3% reading ±20digits) ╱ 40mΩ~400Ω:±(0.8% reading ±6digits)
Measurement Condition Current : Approx. 40mA, 4mA, 400μA, 40μA, 4μA
Frequency : 1KHz±30Hz
DC Voltage Range : 6V, 60V
Resolution : 1mV, 10mV
Accuracy : ±(0.1%rdg ±6digits)
Temperature  Range : -20℃ to 60℃ (-4℉ to 140℉)
Resolution :0.1℃ / 0.1℉
Accuracy : ±1℃ / ±1.8℉
DC Current  Range : 60A , 600A
Resolution : 0.01A , 0.1A
Accuracy : 60A : ±(2%rdg+20dgt) , 600A : ±(2%rdg+2dgt)
Open Circuit Voltage 5V max
Manual Data Memory 999 data sets
Continuous Data Memory 6000 data sets (only use PC download)
Comparator

Setting : Resistance upper and lower limits and voltage
throughold limit.
Memory : 99 sets of values

Operating Environment 0℃ to 40℃ (32℉ to 104℉), 80%RH or less, non-condensing.
Maximum Input Voltage 60VDC
Power Supply or AC Adapter Six AA size 1.5V alkaline batteries
Battery Life 5.5 hours
Weight Approx. 530g including batteries
Dimensions Approx. 198(L) × 94(W) × 49(H)mm
Accessories Clip – type test lead with temperature sensor, Pin – type test lead, 3092CP DCA current adaptor, Zero adjustment board, Instruction manual, batteries, AC adaptor, USB cable, CD PC software, Carrying case.
